| Specifications |
| OS | Android 10 ATV |
| CPU | Amlogic S905X4 Quad core ARM Cortex-A55 CPU |
| GPU | Mail-G31 MP2 GPU |
| RAM | 4GB |
| ROM | 64GB |
| WiFi | Built in 2T2R 2.4G&5G WiFi 6 Support IEEE 802.11a/b/g/n/ac/ax |
| BT | V5.0 |
| LAN Ethernet | 1000M Ethernet port |
| LED Indicator | the standby mode is red,the working mode is blue |
| Certified | Google Certified |
| DRM | Support microsoft playready, google widevine L1 |
| HDCP | Support HDCP2.2 |
| HDR | HDR10+, HDR10, HLG and Technicolor HDR processing |
| Language | English, German, French, Italian, Spanish, Chinese, Japanese, etc. 24 languages |
| Video decorder | hardware decoders -AV1 MP-10@L5.1 up to 4Kx2K@60fps
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC MP-10@L5.1 up to 4Kx2K@75fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps |
| Video encorder | Video/Picture Encoding
- Independent JPEG and H.264 encoder with configurable performance/bit-rate
- JPEG image encoding
- H.265/H.264 video encoding up to 1080P@60fps with low latency |
| 3D Graphics | Mail-G31 MP2 GPU
- 4-wide warps, dual texture pipe, 2x 4-wide execution engines (EE)
- Concurrent multi-core processing
- OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0 support |

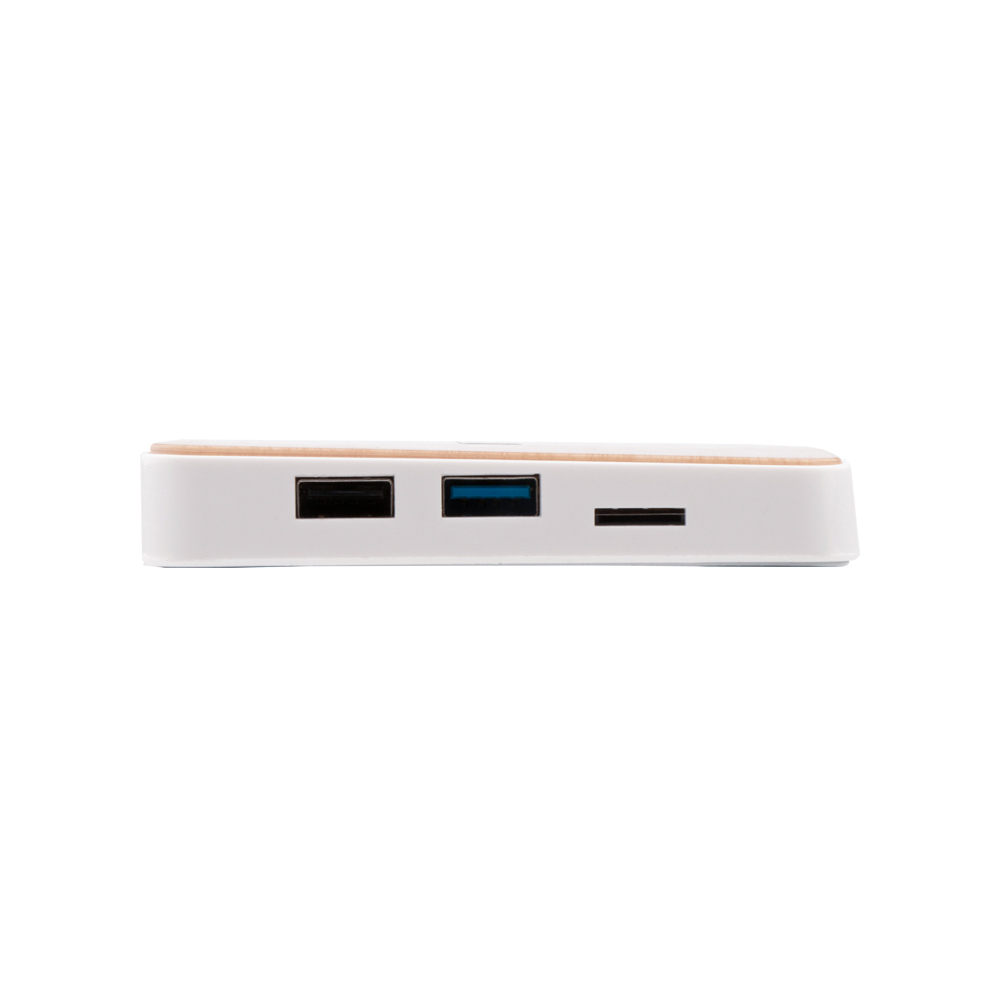

| Port | 1* HDTV support 4K*2K@60 max resolution output |
| 1* USB 2.0 |
| 1* USB 3.0 |
| 1* TF CARD Support 1~32GB |
| 1* 3.5 Phone out CVBS&L/R output |
| 1*OPTICAL output |
| 1* RJ45 LAN |
| 1* DC 5V/2A |
| Accessories | 1* Adapter |
| 1* Gift Box |
| 1* IR&BT Vioce remote |
| 1* HDTV Cable |
| 1* User Manual |
| Loading | machine size | 100x98x19.5mm | Packaged size | 195x130x65mm |
| machine weight | 130g | Packaged weight | 550g |
| PCS/CTN | 20 | Carton Size | 410x355x282mm |
| Carton Net Weight | 11kg | Carton Gross Weight | 11.7kg |
